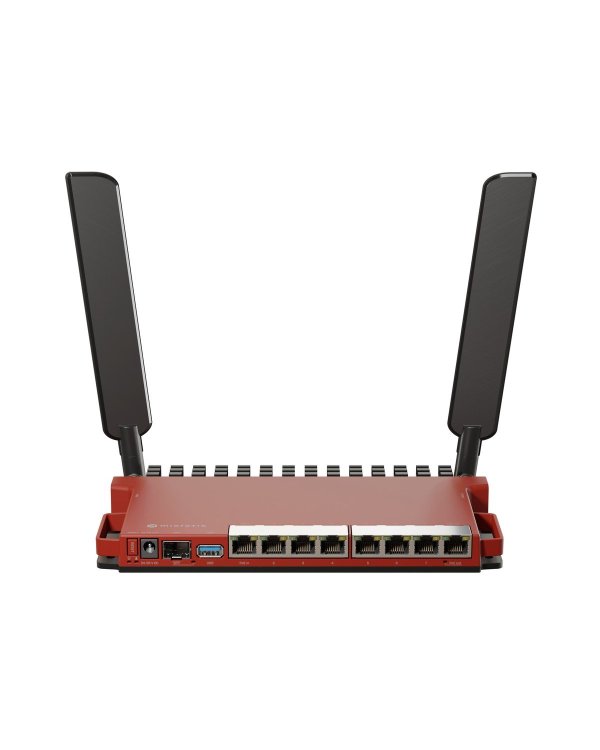

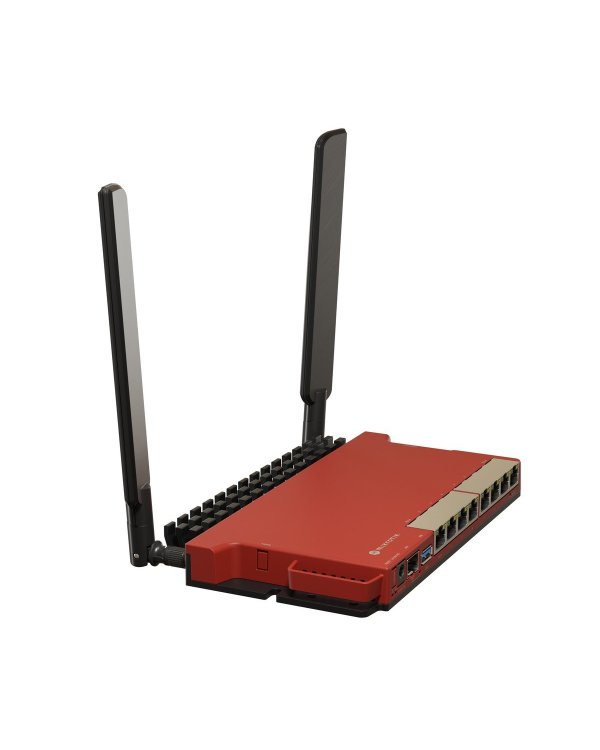

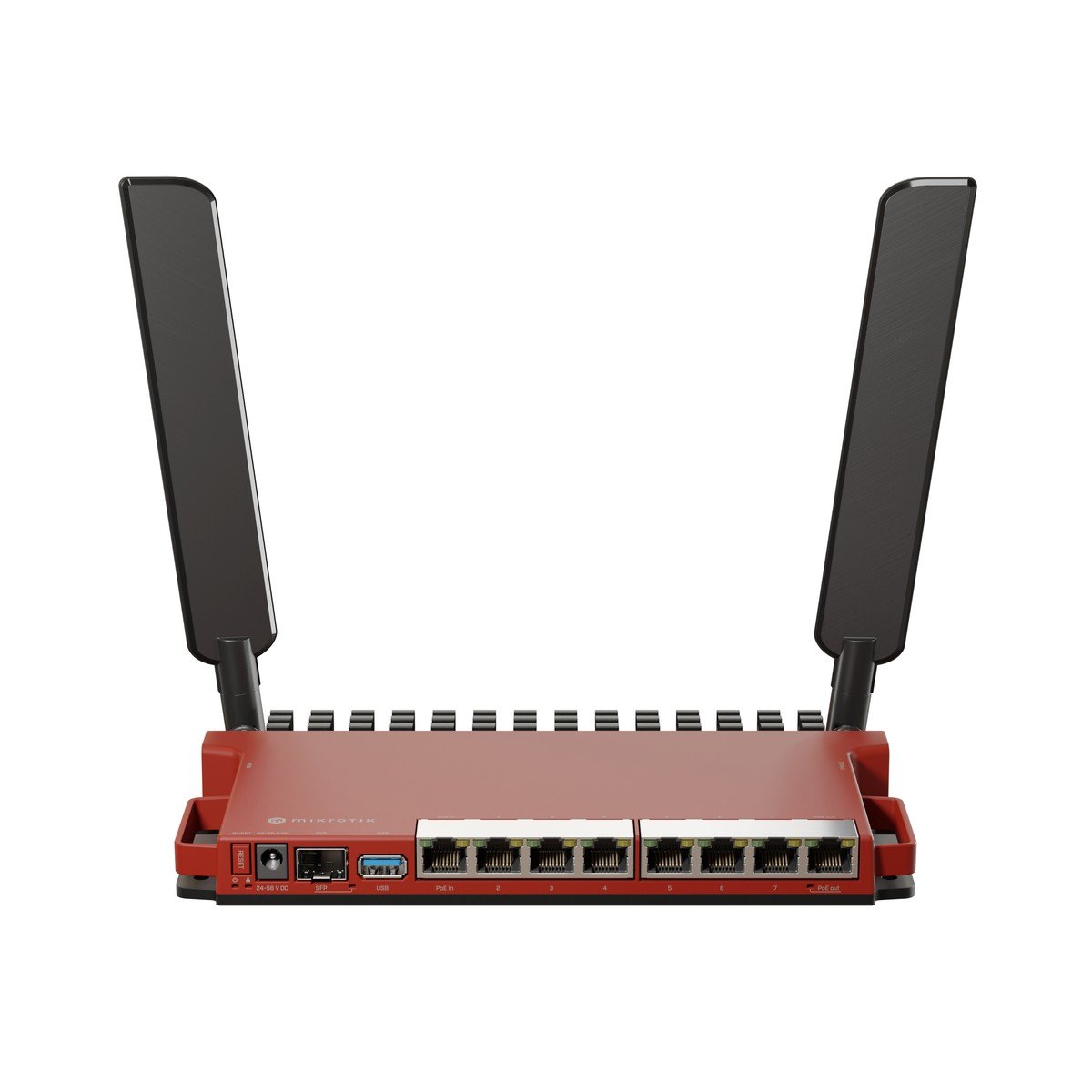

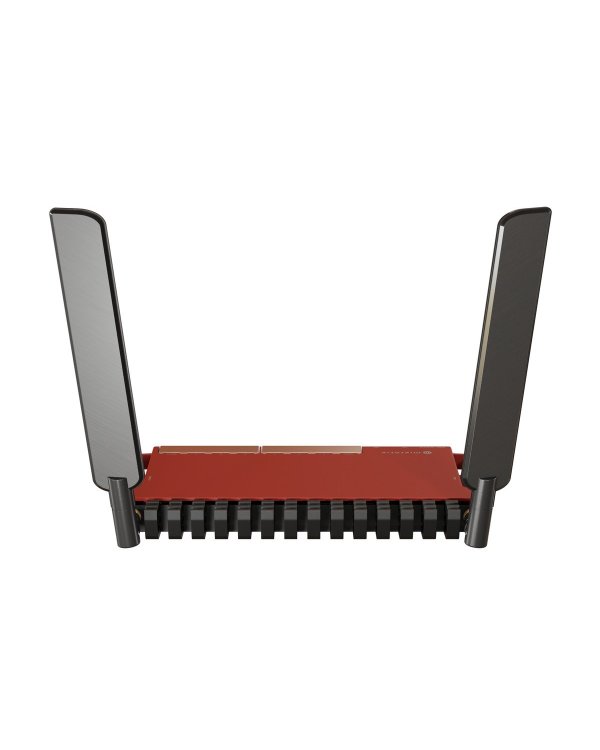

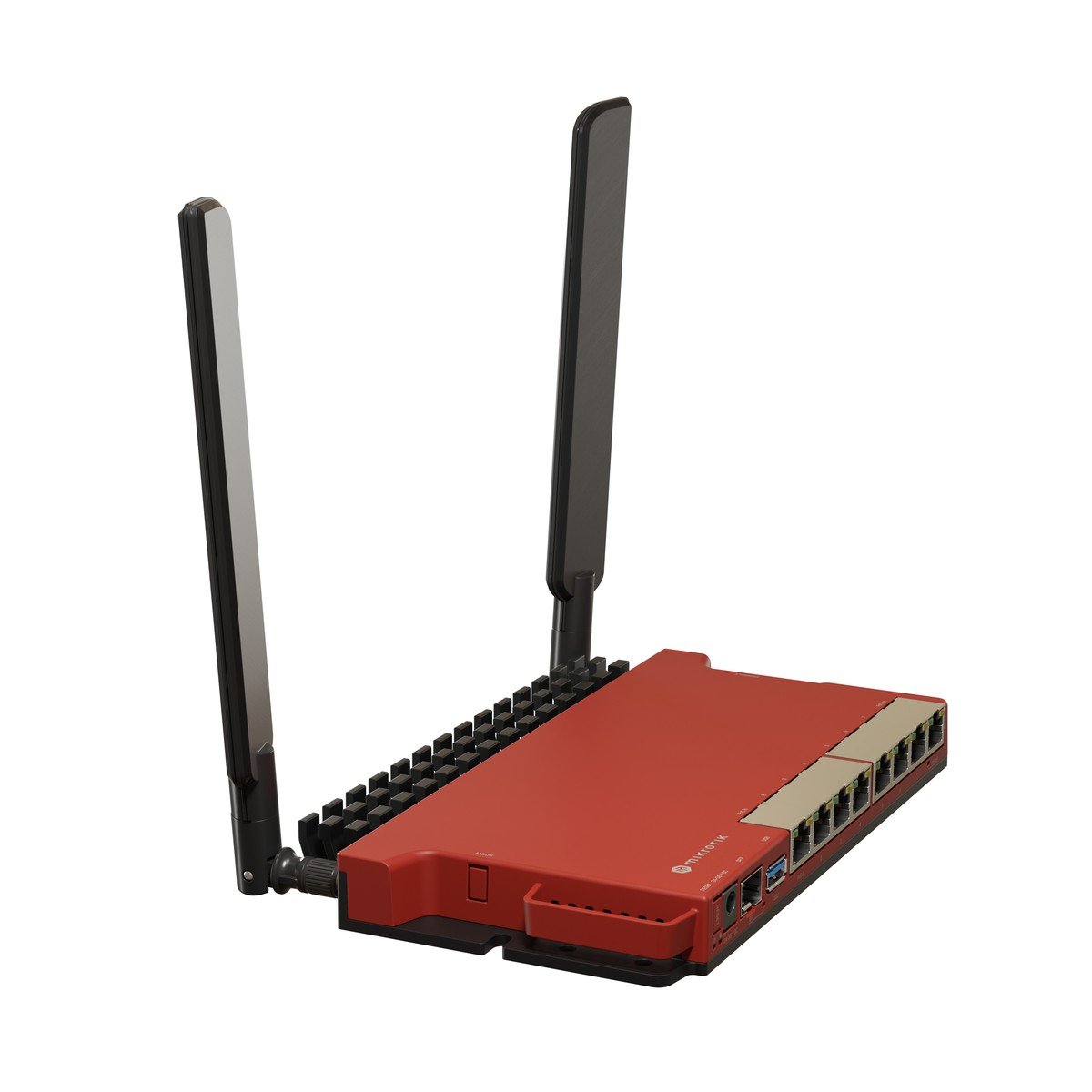

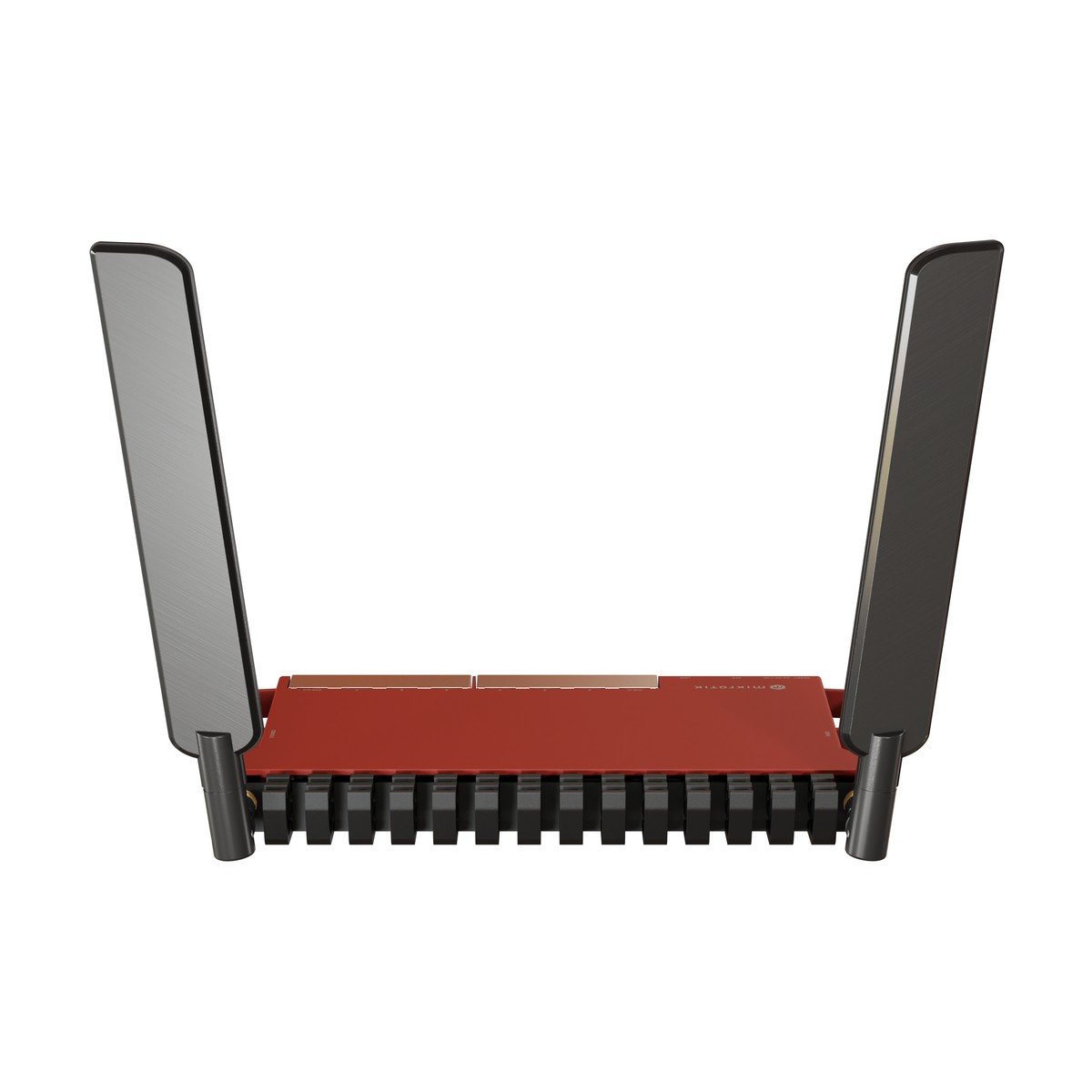

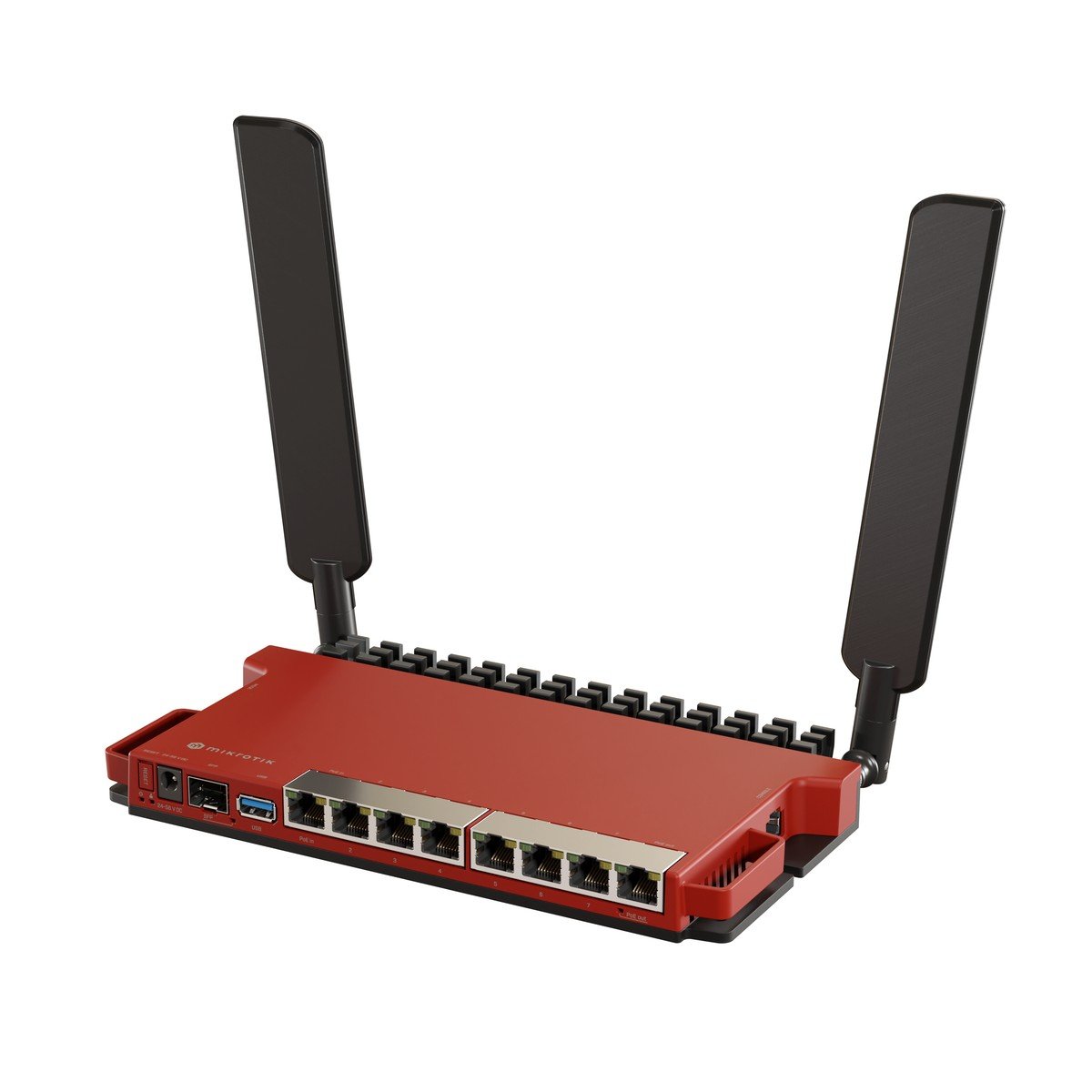

L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 2.4 GHz ax dual-chain wireless.

Specification:

Product code: L009UiGS-2HaxD-IN
CPU: Dual-Core IPQ-5018 800 MHz
CPU architecture: ARM 64bit (RouterOS 32bit)
RAM: 512 MB
RAM type: DDR3L
Storage: 128 MB, NAND
Number of 1G: Ethernet ports 8
Number of 1G SFP ports: 1 (2.5G supported)
USB port: 1 (3.0 type A)
Serial console port: RJ45
Switch chip model: 88E6190
Wireless interface model: IPQ-5018
Wireless 2.4 GHz: 802.11b/g/n/ax dual-chain
Antenna gain: 4 dBi
Dimensions: 220 x 125 x 22 mm
Operating system: RouterOS v7, License level 5
Operating temperature: -40°C to +70°C

PoE-in: 802.3af
PoE-Out*: Passive PoE
Max out per port output: (DC input 24-30 V) 1 A
Max out per port output: (DC input 30-56 V) 450 mA
Number of DC inputs: 2 (PoE-in, DC jack)
PoE-in input Voltage: 24-56 V
DC jack input Voltage: 24-56 V
Max USB current: 1.5 A
Power adapter nominal voltage: 24 V
Power adapter nominal current: 1.5 A
Max power consumption without attachments: 12 W
Max power consumption: 45W (with appropriate PSU)
