CPU Socket Compatibility: Intel LGA 1150, 1151, 1155, 1200, 1700; AMD AM4, AM5

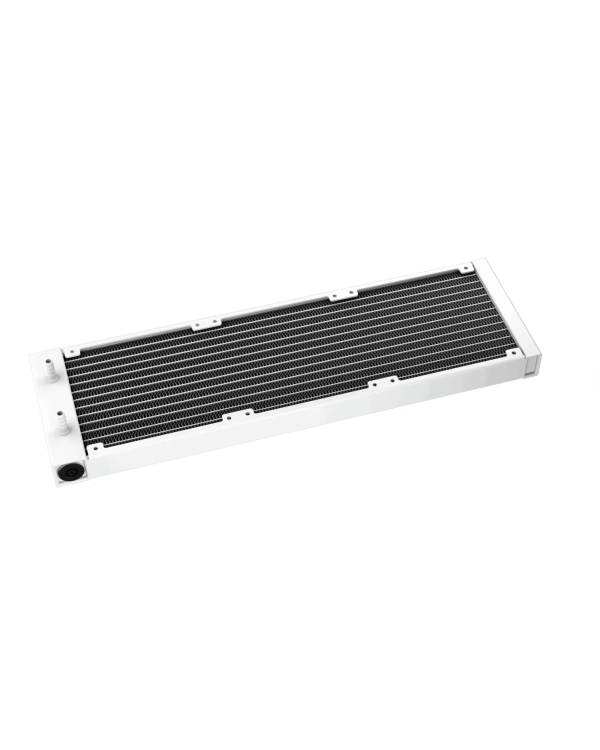

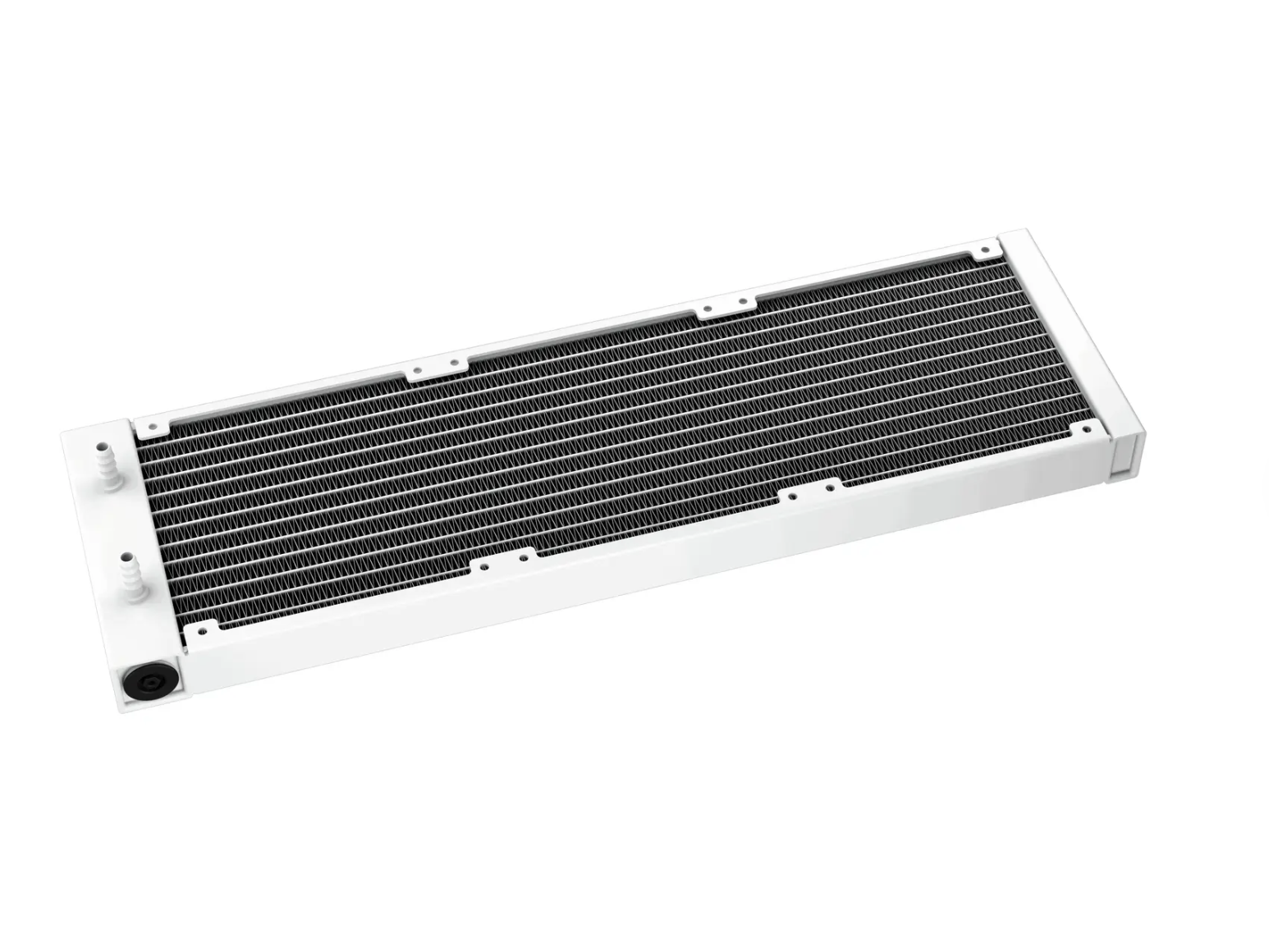

Radiator Dimensions: 402 × 120 × 27 mm

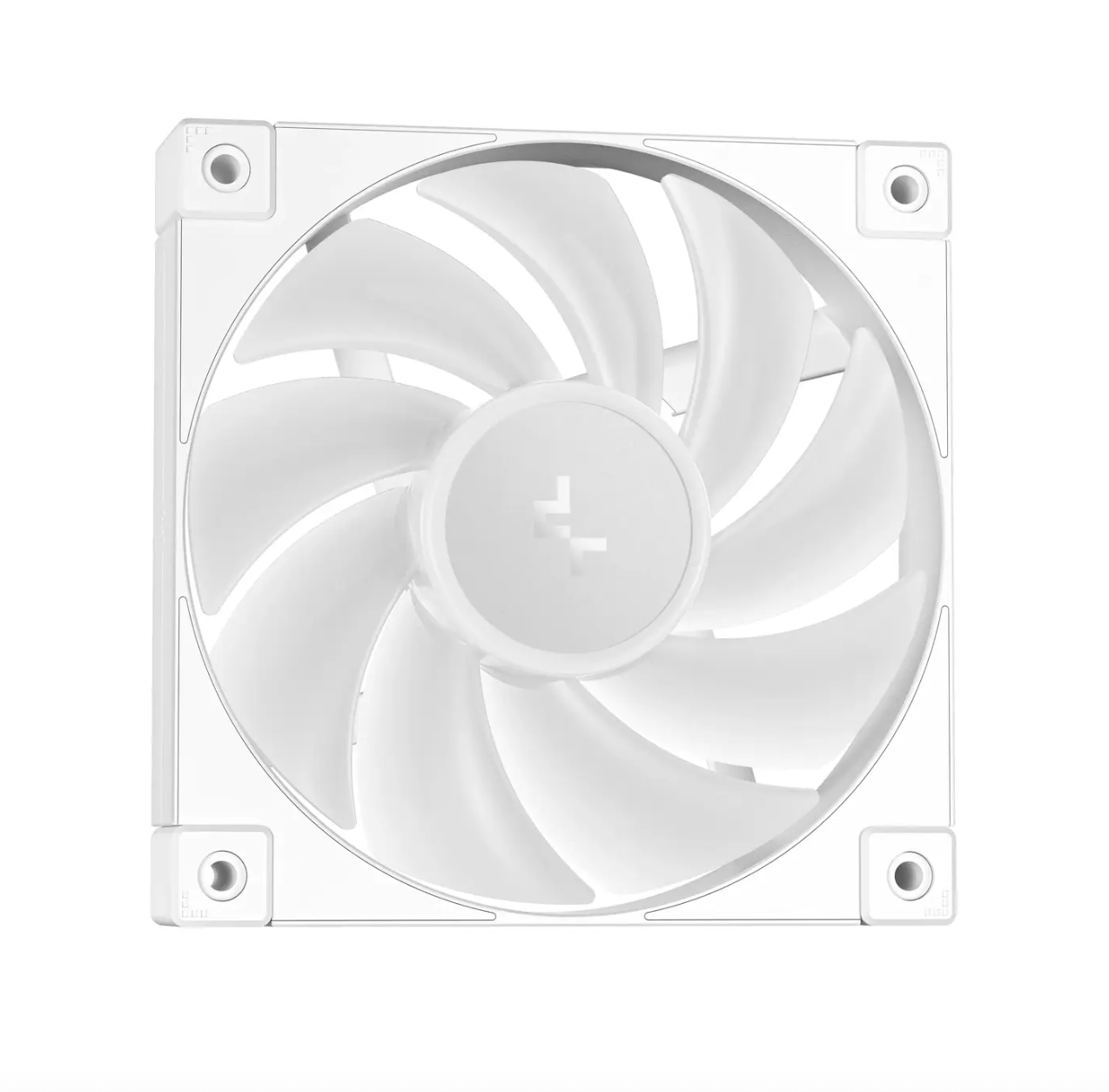

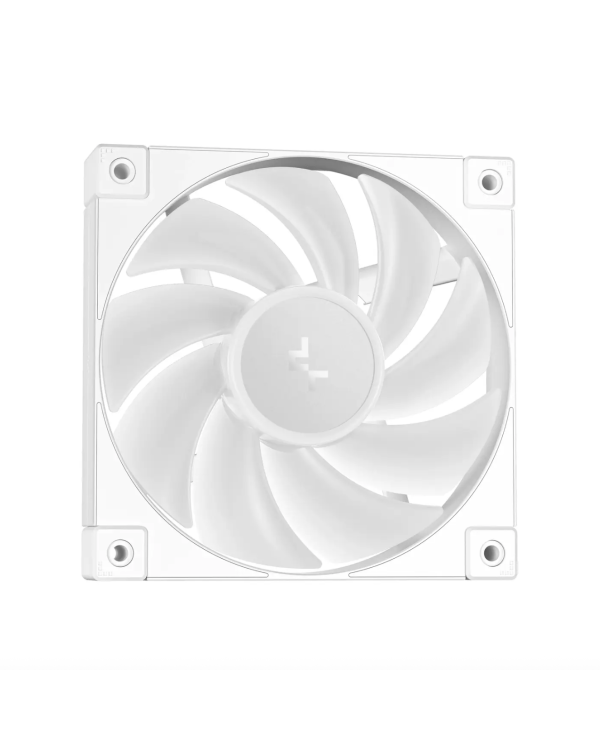

Fans:

•


  Quantity: 3 × 120 mm





•


  Speed: 600-2400 RPM





•


  Airflow: up to 72.04 CFM





•


  Air Pressure: up to 3.48 mmH₂O





•


  Noise: up to 38.71 dB(A)





•


  Bearing: Hydro Bearing




Pump Specifications:

•


  Speed: up to 3400 RPM





•


  Voltage: 12 V DC





•


  Current: 0.35 A





•


  Power Consumption: 4.2 W




LCD Display:

•


  Size: 2.83 inches





•


  Resolution: 480 × 640 pixels





•


  Color Depth: 16.7 million colors





•


  Orientation: automatic (thanks to built-in gyroscope)




LED Lighting: ARGB (Addressable RGB)

Connectors:

•


  Fans: 4-pin PWM





•


  Pump: 4-pin PWM





•


  LED Lighting: 3-pin (+5V-D-G)




Additional Features:

•


  DeepCreative Software: allows customization of display content, synchronization of RGB lighting with motherboard ARGB controller, and use of thermal warning system.





•


  Anti-Leak Technology: internal valve regulates pressure and prevents leakage risk.





•


  Enhanced Pump Design: 3-phase, 6-slot, 4-pole motor with speed up to 3400 RPM.





•

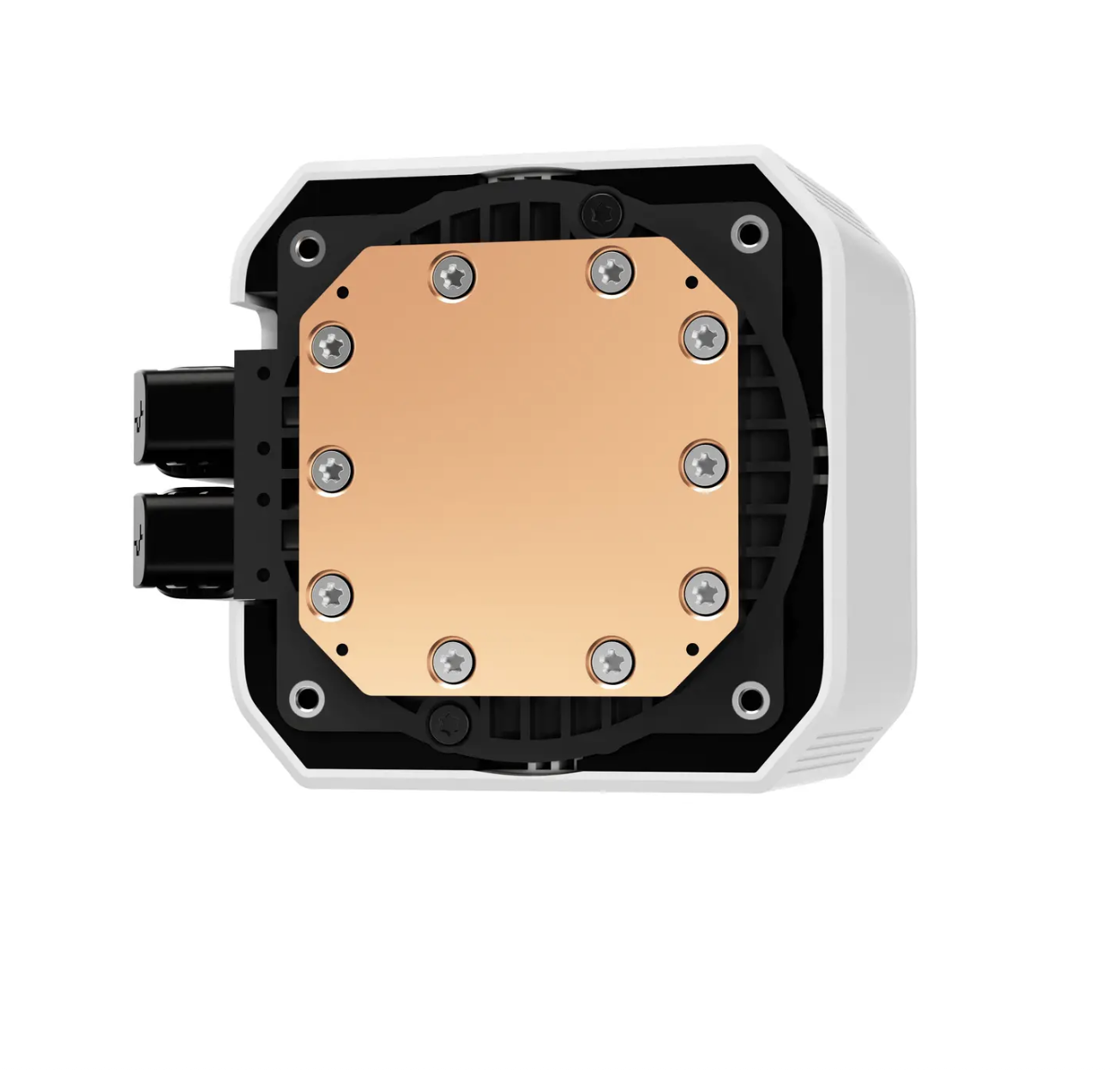

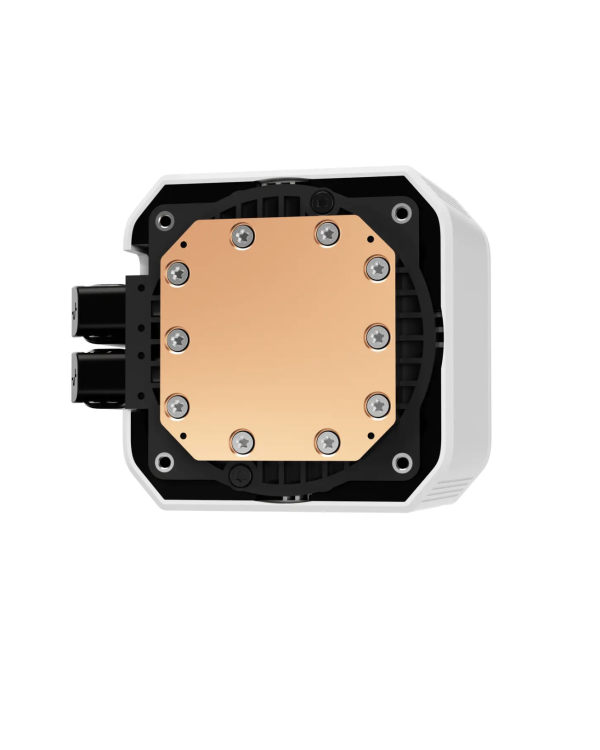

  Optimized Cold Plate: 0.1 mm flow channels and precise liquid splitter ensure efficient heat transfer.
