Specification:

•


  Pixel: 2 MP





•


  Image Sensor: 2 MP CMOS





•


  Max. Resolution: 1920 (H) × 1080 (V)





•


  Scanning System: Progressive





•


  Electronic Shutter Speed:





  •


    PAL: 1/25 s - 1/100,000 s





  •


    NTSC: 1/30 s - 1/100,000 s









•


  Min. Illumination:





  •


    0.001 lux @F1.6 (Color, 30 IRE)





  •


    0.0001 lux @F1.6 (B/W, 30 IRE)





  •


    0 lux (IR on)









•


  S/N Ratio: >65 dB





•


  Illumination Distance:





  •


    IR: 40 m (131 ft)





  •


    Warm light: 40 m (131 ft)









•


  Illuminator Control: Auto/Manual





•


  Illuminator Number: 2 × IR, 2 × Warm light





•


  Pan/Tilt/Rotation Range:





  •


    Pan: 0°-360°





  •


    Tilt: 0°-90°





  •


    Rotation: 0°-360°








Lens:

•


  Lens Type: Fixed-focal





•


  Lens Mount: M12





•


  Focal Length: 3.6 mm





•


  Max. Aperture: F1.6





•


  Field of View (3.6 mm): H: 86°, V: 46°, D: 101°





•


  Iris Control: Fixed





•


  Close Focus Distance: 1.1 m (3.6 ft)




DORI Distance (3.6 mm):

•


  Detect: 53.7 m (176 ft)





•


  Observe: 21.5 m (71 ft)





•


  Recognize: 10.7 m (35 ft)





•


  Identify: 5.4 m (18 ft)




Video:

•


  Frame Rate:





  •


    CVI: PAL 1080p@25 fps / NTSC 1080p@30 fps





  •


    AHD: PAL 1080p@25 fps / NTSC 1080p@30 fps





  •


    TVI: PAL 1080p@25 fps / NTSC 1080p@30 fps





  •


    CVBS: PAL 960×576H / NTSC 960×480H









•


  Resolution: 1080p (1920×1080), 960H (960×576 / 960×480)





•


  Day/Night: Auto (ICR) / Color / B/W





•


  BLC: BLC, HLC, WDR





•


  WDR: 130 dB





•


  White Balance: Auto / Area





•


  Gain Control: Auto/Manual





•


  Noise Reduction: 3D NR





•


  Smart Illumination: Yes





•


  Mirror: On/Off





•


  Privacy Masking: On/Off (8 areas, rectangle)





•


  Illuminator Modes: Smart IR & WL, WL Mode, IR Mode




Certification:

•


  CE: EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017





•


  FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014





•


  UL: UL62368-1 + CAN/CSA C22.2 No.62368-1-14




Ports:

•


  Video Output: CVI/TVI/AHD/CVBS (1 × BNC port)





•


  Audio Input: 1 channel, built-in MIC (-A)




Power

•


  Power Supply: 12 VDC ±30%





•


  Consumption: Max 4.0 W (LED on)




Environment:

•


  Operating Temp.: -40 °C to +60 °C (-40 °F to +140 °F)





•


  Humidity: <95% RH (non-condensing)





•


  Storage Temp.: -40 °C to +60 °C (-40 °F to +140 °F)





•


  Protection: IP67




Structure:

•


  Casing Material: Metal





•


  Product Dimensions: 240.7 × 90.7 × 90.4 mm (9.48" × 3.57" × 3.56")





•


  Packaging Dimensions: 299 × 119 × 111 mm (11.77" × 4.69" × 4.37")





•


  Net Weight: 0.65 kg (1.43 lb)





•


  Gross Weight: 0.89 kg (1.96 lb)





•

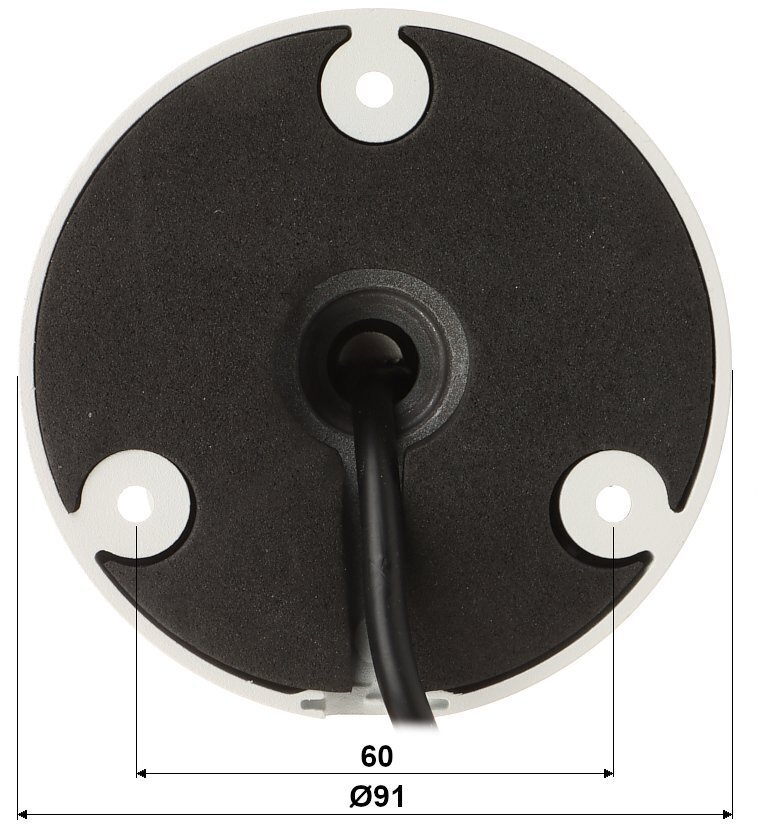

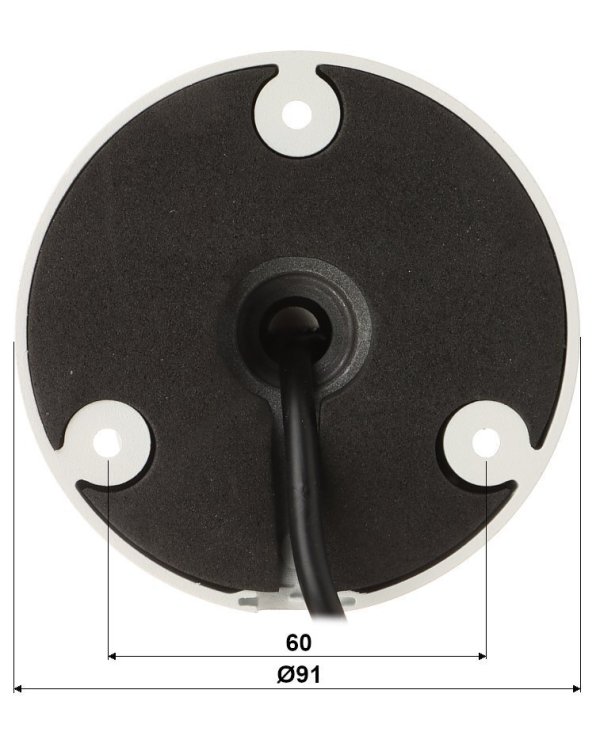

  Installation: Wall mount / Ceiling mount / Pole mount
