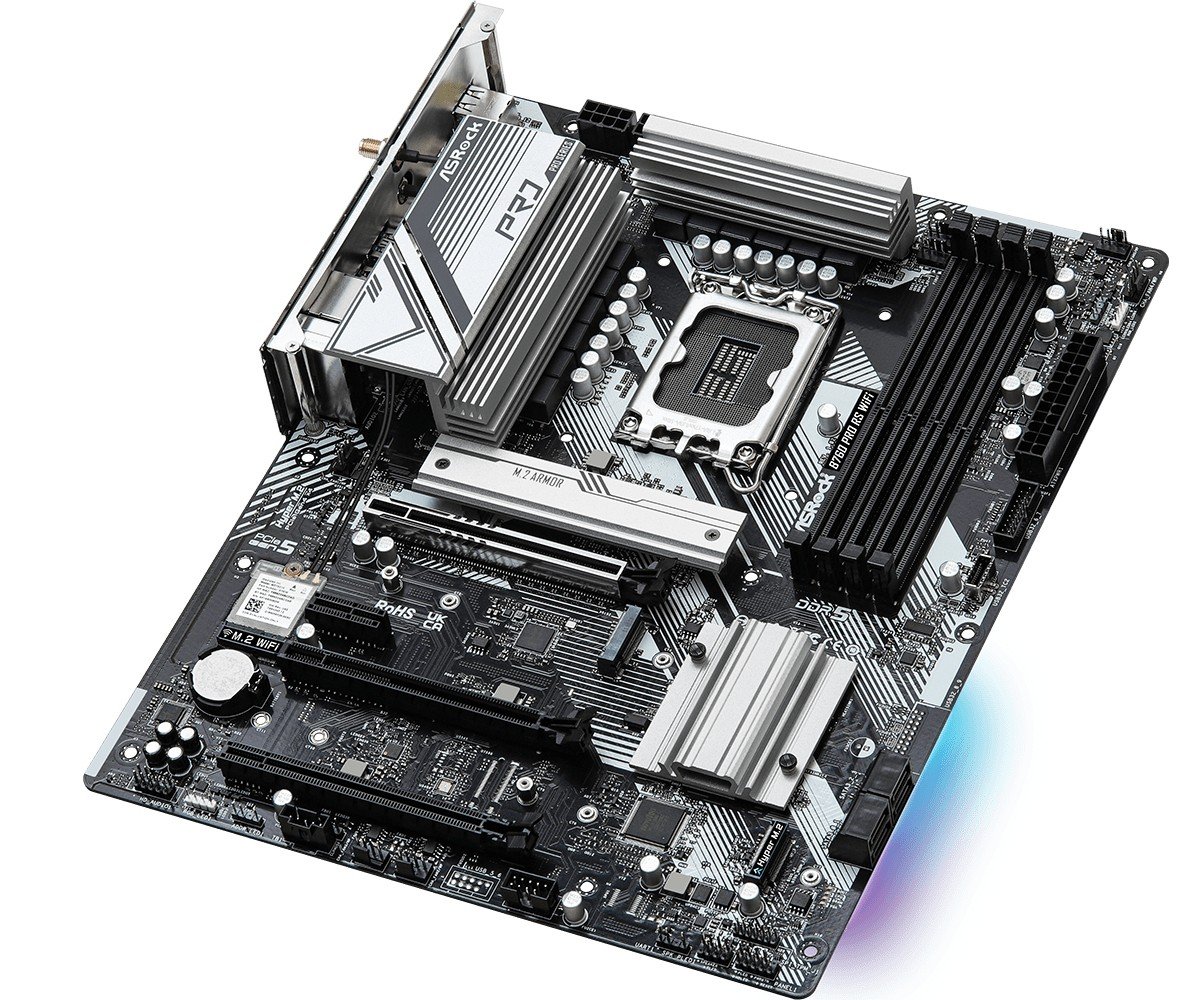

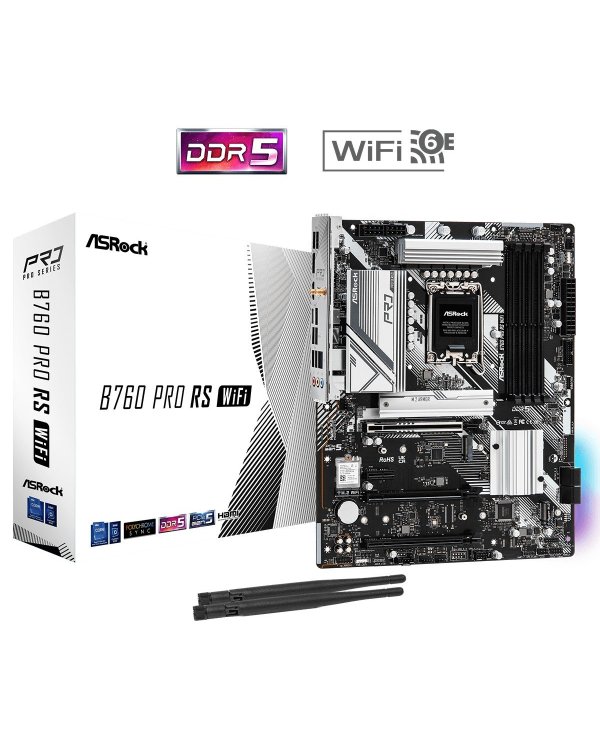

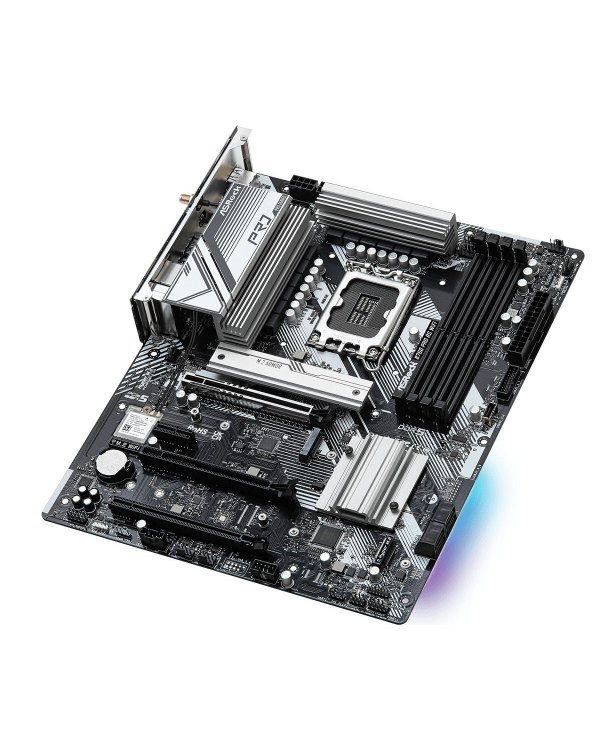

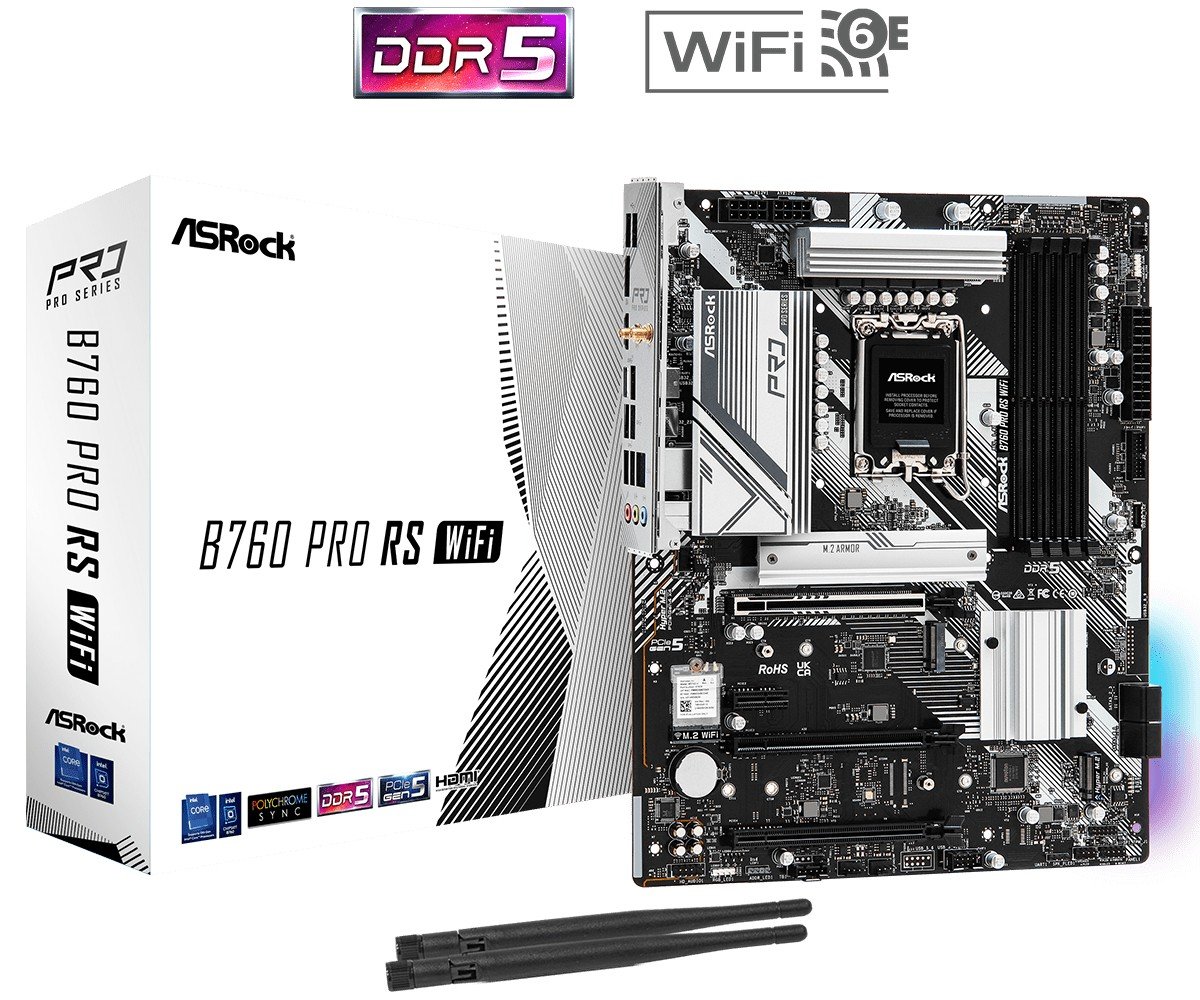

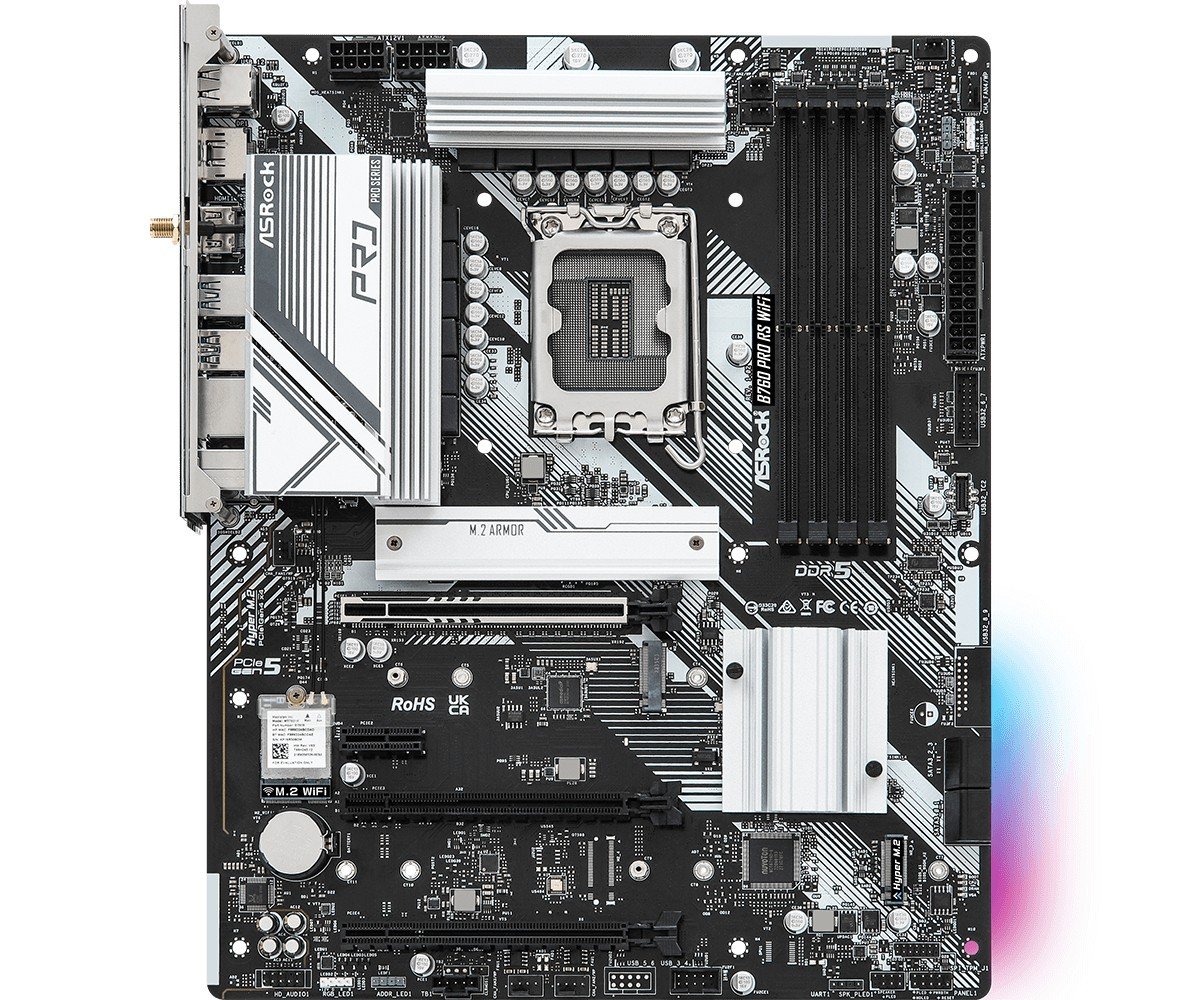

The ASRock B760 Pro RS WiFi motherboard is designed to support modern Intel processors and offers a wide range of features for building high-performance systems.

Key Specifications:

•


  Processor Support: Supports 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700 socket).





•


  Power Delivery: 10+1+1-phase power design with Dr.MOS for VCore and integrated graphics, ensuring stable system operation.





•


  Memory: 4 DDR5 DIMM slots with dual-channel support and frequencies up to 7200+ MHz (OC).





•


  Expansion Slots:





  • 1 x PCIe 5.0 x16


  • 1 x PCIe 4.0 x16


  • 1 x PCIe 3.0 x16


  • 1 x PCIe 3.0 x1






•


  Graphics Outputs: HDMI, DisplayPort, and eDP, supporting high-resolution displays.





•


  Audio: 7.1-channel HD Realtek ALC897 codec with Nahimic Audio technology for immersive sound quality.





•


  Storage:





  • 4 x SATA3


  • 2 x Hyper M.2 (PCIe Gen4x4)


  • 1 x M.2 (PCIe Gen4x2)






•


  USB Ports:





  • 2 x USB 3.2 Gen2 Type-C (1 rear, 1 front)


  • 1 x USB 3.2 Gen2 Type-A (rear)


  • 6 x USB 3.2 Gen1 (4 rear, 2 front)


  • 4 x USB 2.0 (2 rear, 2 front)






•


  Networking:





  • Dragon 2.5G LAN for wired connections


  • 802.11ax Wi-Fi 6E module with Bluetooth support for wireless connectivity






•


  Additional Features:

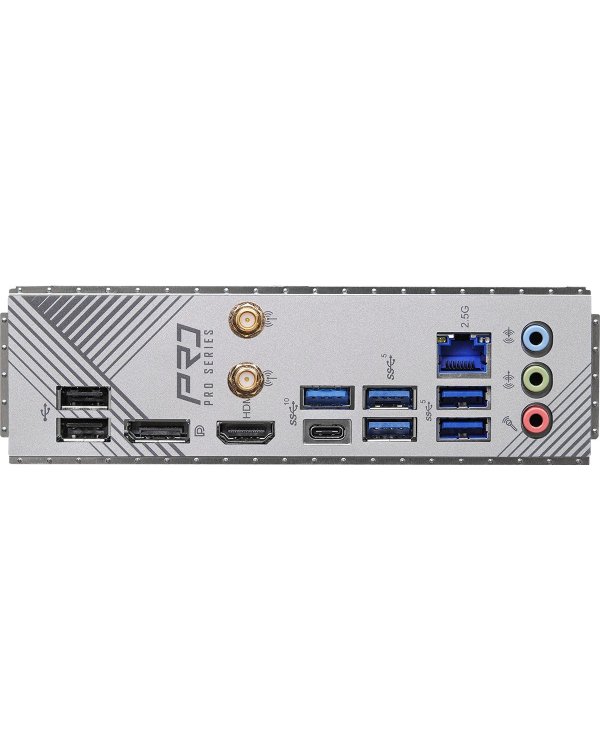

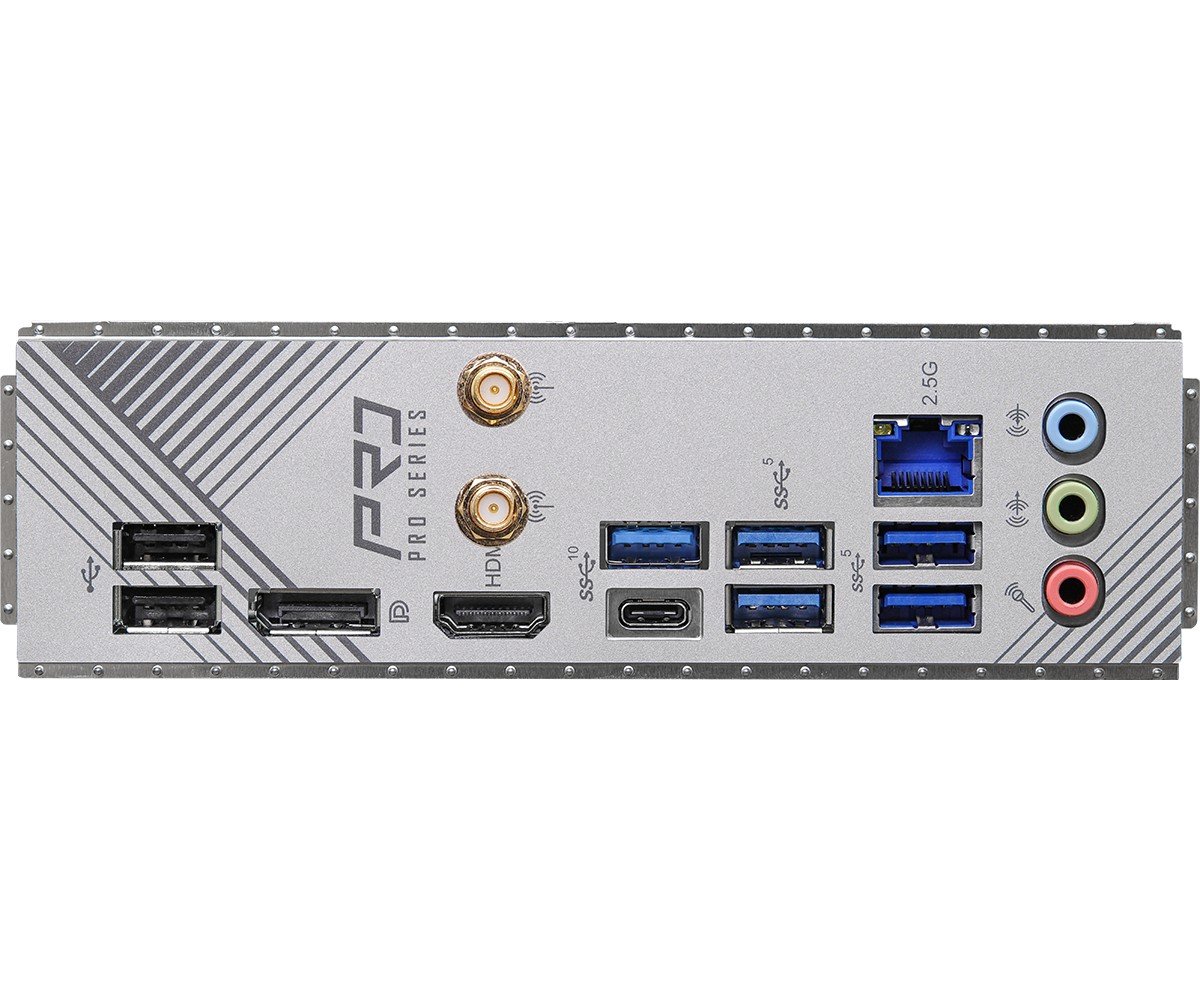

  • Pre-installed I/O shield for easier PC assembly


  • Auto Driver Installer from ASRock for automatic driver setup


  • AMD CrossFire™ support for multi-GPU configurations





This motherboard combines modern technology with high performance, making it an excellent choice for building powerful and reliable PC systems.
