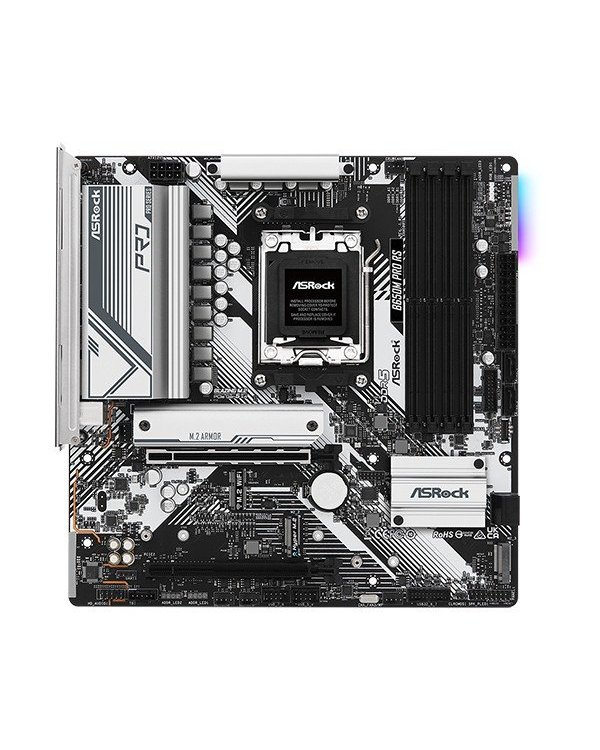

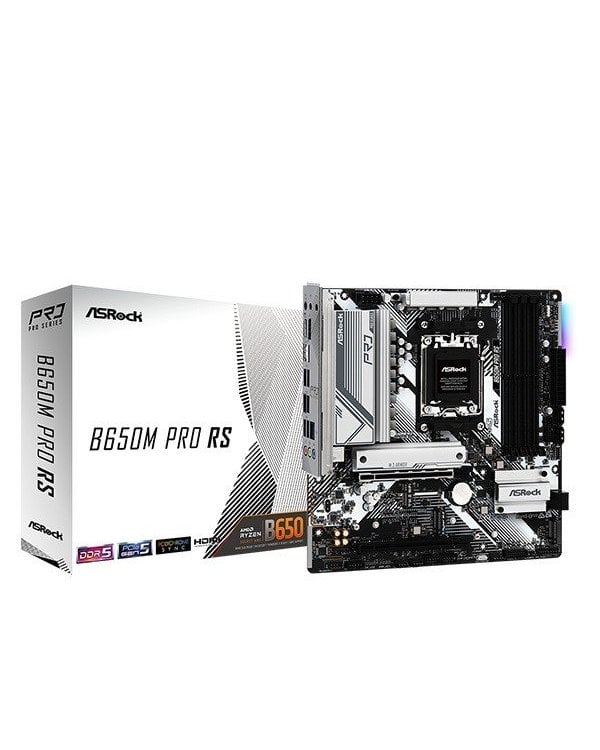

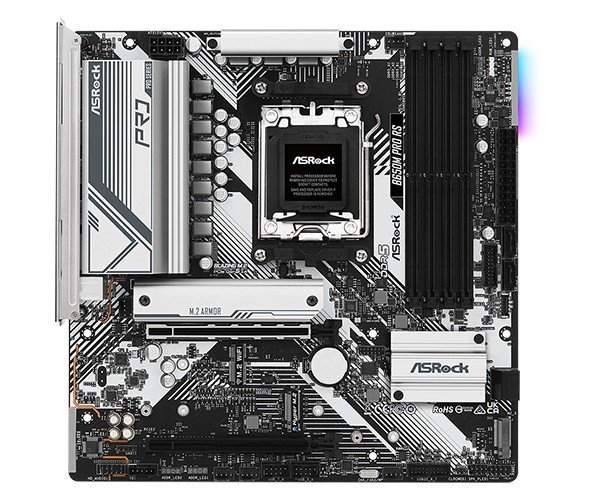

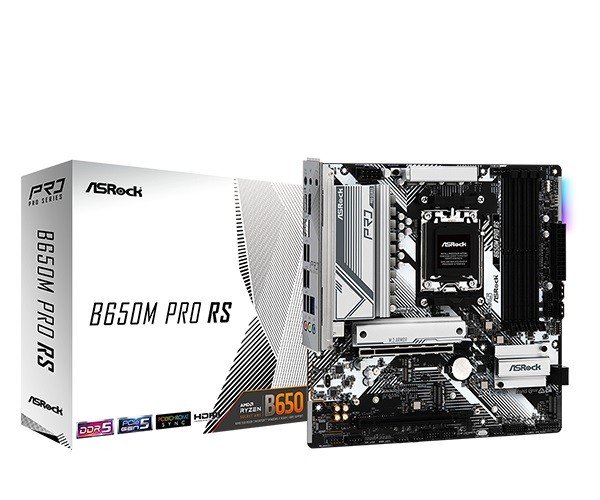

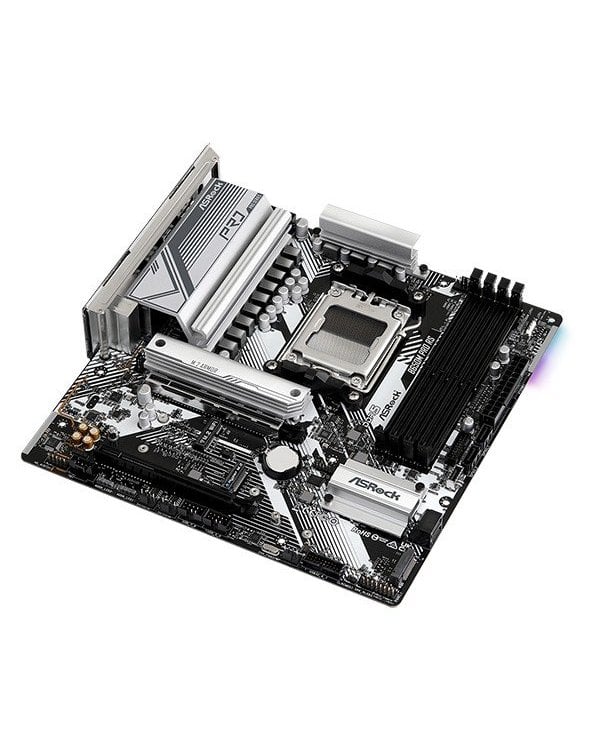

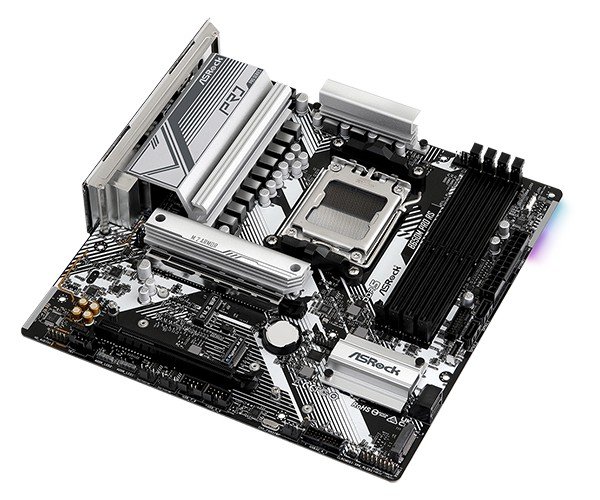

ASRock B650M PRO RS Motherboard - Specifications

General Information:

• Model: B650M PRO RS


• Form Factor: Micro ATX


• Dimensions: 24.4 x 24.4 cm


• Socket: AM5


• Chipset: AMD B650


• Processor Compatibility: AMD Ryzen (No integrated CPU)

Memory:

• Type: DDR5


• Slots: 4


• Max Frequency: 7200 MHz


• Max Capacity: 192 GB

Expansion & Storage:

• PCIe Slots:



  • 1 x PCIe 3.0 x16


  • 1 x PCIe 4.0 x16






• M.2 Slots: 4


• SATA Devices Support: Up to 4


• RAID Support: Yes

Connectivity & Networking:

• LAN: 1 x 10/100/1000/2500 Mbps


• Rear I/O USB Ports: 8


• Onboard USB Ports: 9


• USB Breakdown:



  • USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0: 7


  • USB 3.2 Gen 2 / USB 3.1 Gen 2: 2


  • USB Type-C: 1

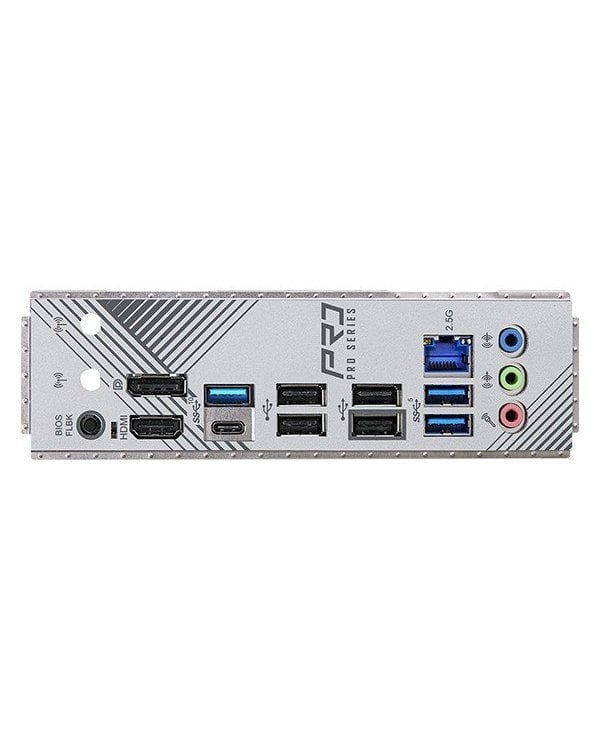

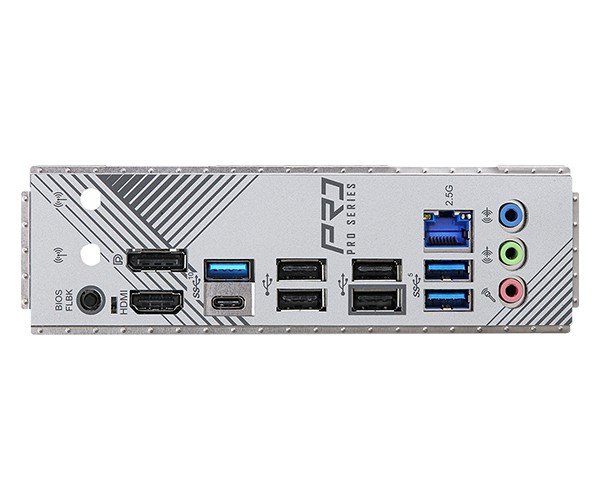

External Connectors:

• 1 x DisplayPort


• 1 x HDMI


• 1 x RJ-45 (LAN)


• 1 x Line In, Line Out, MIC


• 4 x USB 2.0


• 2 x USB 3.0


• 1 x USB 3.1


• 1 x USB 3.1 Type-C


• 2 x SMA (Antenna Connectors)


• 1 x Flash BIOS Button

Internal Connectors:

• Cooling & Power:



  • 1 x 4-pin CPU Fan


  • 1 x 4-pin CPU/Water Pump Fan


  • 3 x 4-pin Chassis Fans


  • 1 x 8-pin 12V Power


  • 1 x 24-pin ATX Power






• Storage & USB:



  • 4 x M.2 Slots


  • 4 x SATA III (6Gb/s)


  • 4 x USB 2.0 / 1.1 Headers


  • 4 x USB 3.0 Headers


  • 1 x USB-C Header


  • 1 x Thunderbolt Header






• Miscellaneous:



  • 1 x TPM Header


  • 1 x Front Panel Audio Header


  • 1 x Power LED Header


  • 1 x RGB LED Strip Header


  • 3 x Addressable LED Headers
